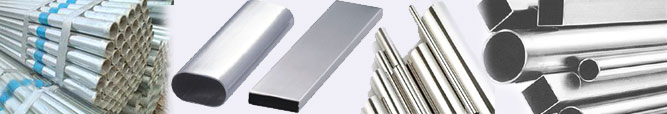

Products - Stainless Steel Pipe
Stainless Steel: ASTM A 312, A 213, A 213, A 249, A 269, A 358, A 240, A 276
Type: 202, 304, 304L, 304, 304H, 316, 316L, 316Ti, 321, 321H, 317, 317L, 310, 310S, 409, 410, 420, 430 etc.
Types : Round, Square Rectangular.
Size : Upto 24"NB (Seamless&Welded) Wall thickness:Sch.5S to Sch. XXS
DIMEMSION & WEIGHT OF SEAMLESS & WELDED SS. PIPE (KG.-MTR.)
NOM BORE |
OUTSIDE DIAMETER |
SHEDULE 5 |
SHEDULE 10 |
SCHEDULE 40 |
SHEDULE 80 |
SCHEDULE 160 |
||||||
MM |
INCH |
MM |
WALL THICK |
WEIGHT (Kg/m) |
WALL THICK |
WEIGHT (Kg/m) |
WALL THICK |
WEIGHT (Kg/m) |
WALL THICK |
WEIGHT (Kg/m) |
WALL THICK |
WEIGHT (Kg/m) |
3 |
1/8'' |
10.3 |
- |
- |
1.24 |
0.278 |
1.73 |
0.365 |
2.41 |
0.469 |
- |
- |
6 |
1/4" |
13.7 |
- |
- |
1.65 |
0.491 |
2.24 |
0.633 |
3.02 |
0.497 |
- |
- |
10 |
3/8" |
17.2 |
- |
- |
1.62 |
0.631 |
2.31 |
0.845 |
3.2 |
1.1 |
- |
- |
15 |
1/2" |
21.3 |
1.65 |
0.801 |
2.11 |
0.999 |
2.77 |
1.27 |
3.75 |
1.62 |
4.75 |
1.94 |
20 |
3/4" |
26.7 |
1.65 |
1.02 |
2.11 |
1.28 |
2.87 |
1.68 |
3.91 |
2.2 |
5.54 |
2.89 |
25 |
1" |
33.4 |
1.65 |
1.29 |
2.77 |
2.09 |
3.38 |
2.5 |
4.55 |
3.24 |
6.35 |
4.24 |
32 |
1/1/4" |
42.2 |
1.65 |
1.65 |
2.77 |
2.69 |
3.56 |
3.38 |
4.85 |
4.46 |
6.35 |
5.61 |
40 |
1/1/2" |
48.30 |
1.65 |
1.90 |
2.77 |
3.11 |
3.68 |
4.05 |
5.08 |
5.41 |
7.14 |
7.25 |
50 |
2" |
60.3 |
1.65 |
3.34 |
2.77 |
3.92 |
3.91 |
5.44 |
5.54 |
7.48 |
9.41 |
11.1 |
65 |
2/1/2" |
73.0 |
2.11 |
3.69 |
3.05 |
5.26 |
5.16 |
8.63 |
7.01 |
11.4 |
9.53 |
14.9 |
80 |
3" |
88.9 |
2.11 |
4.51 |
3.05 |
6.45 |
5.49 |
11.3 |
7.62 |
15.3 |
11.1 |
21.3 |
90 |
3/1/2" |
101.6 |
2.11 |
5.18 |
3.05 |
7.41 |
5.74 |
13.6 |
8.08 |
18.6 |
- |
- |
100 |
4" |
114.3 |
2.11 |
5.94 |
3.05 |
8.38 |
6.02 |
16.1 |
8.56 |
22.3 |
13.8 |
33.6 |
125 |
5" |
141.3 |
2.77 |
9.34 |
3.4 |
11.6 |
6.55 |
21.8 |
9.53 |
31.0 |
- |
49.2 |
150 |
6" |
168.3 |
2.77 |
11.3 |
3.4 |
13.8 |
7.11 |
29.1 |
11.0 |
42.7 |
18.2 |
67.8 |
200 |
8" |
219.1 |
2.77 |
14.8 |
3.76 |
20.0 |
8.18 |
42.8 |
12.7 |
64.6 |
23.0 |
111.2 |
250 |
10" |
273.05 |
3.40 |
23.0 |
4.19 |
28.3 |
9.27 |
61.4 |
- |
- |
- |
- |
300 |
12" |
323.85 |
3.96 |
31.80 |
4.57 |
36.6 |
9.52 |
71.1 |
- |
- |
- |
- |
350 |
14" |
355.60 |
3.96 |
34.90 |
4.73 |
42.1 |
9.52 |
82.42 |
- |
- |
- |
- |
400 |
16" |
406.44 |
4.19 |
42.30 |
4.78 |
48.2 |
9.52 |
94.52 |
- |
- |
- |
- |
450 |
18" |
457.20 |
4.19 |
47.60 |
4.78 |
54.3 |
9.52 |
106.61 |
- |
- |
- |
- |
500 |
20" |
508.00 |
4.78 |
60.40 |
5.54 |
69.9 |
9.52 |
118.71 |
- |
- |
- |
- |
550 |
22" |
558 |
4.78 |
66.15 |
5.54 |
76.58 |
9.52 |
130.80 |
- |
- |
- |
- |
600 |
24" |
609.60 |
5.54 |
83.63 |
6.35 |
95.77 |
9.52 |
142.91 |
- |
- |
- |
- |
WEIGHT & THICKNESS OF S.S. PIPE & TUBES FOR BOILERS, HEAT EXCHANGERS
SIZE INCH |
O.D. (Mm) Kg./Ft. |
22G (0.71) Kg./Ft. |
20G (0.91) Kg./Ft. |
18G (1.12) Kg./Ft. |
16G (1.62) Kg./Ft. |
14G (2.03) Kg./Ft. |
12G (2.64) Kg./Ft. |
10G (3.25) Kg./Ft. |
1/4" |
6.35 |
0.030 |
0.037 |
0.046 |
0.058 |
0.065 |
0.070 |
0.075 |
5/16" |
7.93 |
0.038 |
0.048 |
0.060 |
0.079 |
0.089 |
0.105 |
0.114 |
3/8" |
9.52 |
0.046 |
0.058 |
0.080 |
0.097 |
0.113 |
0.135 |
0.152 |
1/2" |
12.7 |
0.063 |
0.079 |
0.105 |
0.134 |
0.157 |
0.200 |
0.226 |
3/4" |
19.05 |
0.097 |
0.124 |
0.161 |
0.215 |
0.256 |
0.326 |
0.386 |
1" |
25.4 |
0.131 |
0.167 |
0.218 |
0.294 |
0.351 |
0.450 |
0.541 |
11/4" |
31.82 |
- |
0.200 |
0.275 |
0.375 |
0.448 |
0.580 |
0.696 |
11/2" |
38.1 |
- |
- |
0.332 |
0.452 |
0.542 |
0.700 |
0.851 |
13/4" |
44.45 |
- |
- |
0.390 |
0.530 |
0.646 |
0.832 |
1.020 |
2" |
50.8 |
- |
- |
0.447 |
0.607 |
0.733 |
0.960 |
1.161 |
21/4" |
57.15 |
- |
- |
0.504 |
0.687 |
0.828 |
1.085 |
1.315 |
21/2" |
63.5 |
- |
- |
0.562 |
0.792 |
0.924 |
1.210 |
1.472 |
23/4" |
69.85 |
- |
- |
0.619 |
0.847 |
1.022 |
1.338 |
1.630 |
3" |
76.2 |
- |
- |
0.676 |
0.924 |
1.115 |
1.460 |
1.782 |
31/2" |
88.9 |
- |
- |
0.791 |
1.082 |
1.306 |
1.718 |
2.092 |
4" |
101.6 |
- |
- |
0.905 |
1.239 |
1.497 |
1.971 |
2.403 |
41/2" |
114.3 |
- |
- |
1.020 |
1.397 |
1.608 |
2.224 |
2.713 |
5" |
127 |
- |
- |
1.134 |
1.554 |
1.879 |
2.477 |
3.336 |
51/2" |
139.7 |
- |
- |
1.250 |
1.713 |
2.070 |
2.730 |
3.336 |
6" |
152.4 |
- |
- |
1.364 |
1.875 |
2.261 |
2.983 |
3.654 |
61/2" |
165/1 |
- |
- |
1.478 |
2.028 |
2.452 |
3.256 |
3.975 |
Weight of S.S. Pipe :
OD (MM) - W.T. (MM) X W.T. (MM) x 0.00756 = kg (per ft)
OD (MM) - W.T. (MM) X W.T. (MM) x 0.0248 = kg (per mtr)
